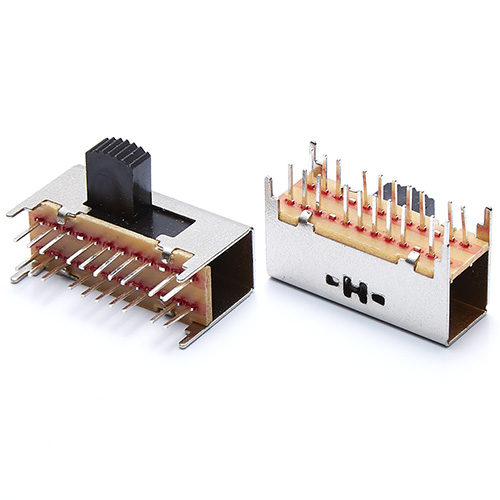

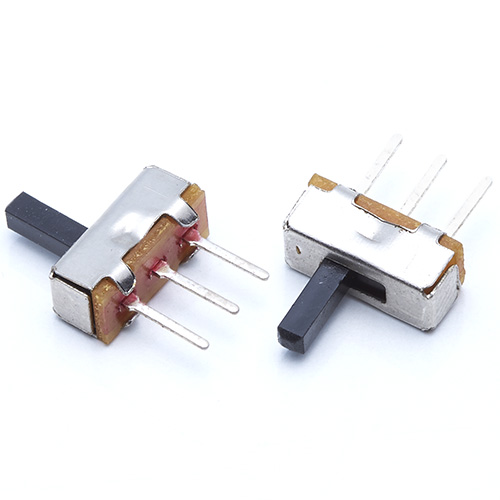

SLIDE SWITCH

The SLIDE SWITCH can be widely used in the following fields:

• Consumer Electronics
  Slide switches are widely used in various electronic devices in daily life, responsible for controlling power, function switching or mode adjustment.
  Related Products:
  • Remote control: Switch between different operation modes.
  • Digital camera: Switch shooting mode or power.
  • Audio: Turn on/off the volume or select an input source.
• Home appliances
  Slide switches are common operating elements in home appliances and are used for mode adjustment or gear shifting.
  Related Products:
  • Fan: Adjust the fan speed (low, medium, high).
  • Vacuum: Switch suction intensity or floor mode.
  • Microwave oven: Select different heating modes.
• Industrial Equipment
  Slide switches are used in the industrial field to control equipment operating modes or parameter settings.
  Related Products:
  • Test instrument: Switches the measuring range or function mode.
  • Control Panel: Adjusts the operating settings of industrial equipment.
  • Automation equipment: Switching operating modes or starting functions.
• Communications equipment
  In communication-related products, slide switches are used to switch device functions or modes.
  Related Products:
  • Intercom: Switch communication channels or adjust volume.
  • Wireless headset: Power on/off or switch pairing mode.
  • Router: Switch Wi-Fi band or reset settings.
• Toys and educational products
  Slide switches are used in toys and educational tools for simple control functions.
  Related Products:
  • Electronic toys: Switch power or sound mode.
  • Educational devices: switch between functional modes (e.g., language learning tools).
  • Building Block Kit: Control the electric module switch.
• Medical Devices
  Slide switches are used in medical products for mode selection or power management.
  Related Products:
  • Electronic blood pressure monitor: Switch between different measurement modes.
  • Medical monitoring equipment: Turn power on/off or adjust functions.
  • Rehabilitation equipment: Switch massage intensity or mode.
• Vehicle Equipment
  Slide switches are used in automotive products to control system functions or modes.
  Related Products:
  • Car audio system: Switch audio source input or control volume.
  • Interior lighting: Switch lighting modes (reading light, mood light).
  • Navigation device: Select map mode or display settings.

Common problems encountered by SLIDE SWITCH and related technologies to overcome them during manufacturing:

1. Poor contact:
   Problem description:
   Due to oxidation, wear or improper design of the contact points, the slide switch may have poor contact, resulting in malfunction or intermittent operation.
   Solution:

   • Use materials that resist oxidation and corrosion (such as gold or silver plating).
   • Increase contact point pressure to improve contact stability.
   • Anti-fouling and dust-proof design of contact points to reduce the impact of environmental pollution on performance.
2. Structural wear:
   Problem description:
   After long-term use, the slide switch may not operate smoothly or cannot be accurately positioned due to wear of the sliding parts.
   Solution:

   • Use highly wear-resistant materials (such as polymer plastic or stainless steel).
   • Optimize the sliding mechanism design to reduce friction of the wearing parts.
   • Added lubricating coating to improve service life and smooth operation.
3. Unstable electrical performance:
   Problem description:
   When used at high frequencies or with high current input, the slide switch may cause electrical performance degradation, such as arcing or overload.
   Solution:

   • Use contact materials that can withstand high currents (such as tungsten-copper alloy).
   • Increase spacing between internal contacts to reduce arc risk.
   • Design current limiting circuits to avoid overload conditions.
4. Insufficient installation stability:
   Problem description:
   The slide switch may become loose or shift due to vibration or external force, affecting product performance.
   Solution:

   • Optimize housing design and enhance structural rigidity.
   • Use high precision moulds to ensure parts fit tightly.
   • Add anti-vibration structures (such as shock-absorbing pads).
5. Poor waterproof performance:
   Problem description:
   In humid or outdoor environments, the slide switch may fail due to water or moisture ingress.
   Solution:

   • Adopts a sealed design with a waterproof rating of IP67 or higher.
   • Use waterproof rubber seals or closed structure designs.
   • Choose moisture-resistant materials, such as polytetrafluoroethylene (PTFE).
6. Poor operating experience:
   Problem description:
   The operation of the slide switch may affect the user experience due to improper damping or unclear positioning.
   Solution:

   • Optimized spring damping design to provide proper feel.
   • Add positioning mechanism design (such as slots or damping slide rails).
   • Conduct multiple rounds of testing to ensure smooth and accurate operation.

Overall strategy for technology improvement

1. Precision manufacturing technology:
   Use high-precision CNC processing equipment to ensure the precise size of each component and reduce assembly errors.
2. Materials Science Applications:
   High-performance materials such as anti-corrosion alloys and polymer plastics are used to improve the durability and stability of the slide switch.
3. Environmental adaptability design:
   Specially designed for different application environments (such as high temperature, humid or vibration environments) to meet various usage requirements.
4. Testing and Inspection:
   Add durability tests and environmental simulation tests (such as salt spray tests and high and low temperature tests) to ensure the stability of the slide switch under different conditions.

Common customized SLIDE SWITCH product requirements include :

1. Size and appearance :
   • Miniature design: When used in small electronic products (such as wearable devices, remote controls), ultra-small slide switches are required to save space.
   • Shell material: Choose high temperature resistant, corrosion resistant or waterproof material according to environmental requirements.
   • Color customization: Customize the switch housing color according to brand design or product appearance requirements.
2. Electrical parameters :
   • Operating Voltage and Current: Adjust the voltage and current rating of the slide switch to suit specific applications (e.g., high-power devices need to support higher currents).
   • Contact resistance: Reduce contact resistance to improve the stability and efficiency of signal transmission.
   • Multi-gear design: Multiple gears can be designed as required, such as 2 gears, 3 gears or even more, for multi-mode selection.
3. Mechanical properties :
   • Sliding damping: Adjust the sliding resistance according to the user's operating experience requirements to provide a suitable feel.
   • Life requirements: Improve the durability of slide switches to meet the requirements of high-frequency use in specific applications such as industrial equipment.
   • Positioning accuracy: Design higher precision positioning mechanisms for applications that require precise switching, such as test instruments.
4. Environmental adaptability :
   • Waterproof/dustproof: Suitable for outdoor devices or environments with high humidity (such as smart homes or outdoor lighting).
   • High or low temperature resistance: Switches designed to withstand high temperatures (such as 200°C) or low temperatures (such as -40°C) for extreme environments.
   • Shock/impact resistant: Suitable for slide switches in vehicle-mounted or portable devices.
5. Installation method :
   • Soldering form: customized solder pin design (such as straight pin, bent pin) to match different PCB layouts.
   • Surface mount (SMD) or through hole (THT): Choose different installation methods according to customer's assembly requirements.
   • Quick-plug structure: suitable for equipment that requires frequent replacement of parts.
6. Special features :
   • Multi-function integration: Combine with LED indicators or additional buttons to achieve multi-function operation.
   • Self-locking mechanism: Design slide switches with self-locking function for use in equipment that requires stable operation (such as medical devices).
   • Smart connectivity: Slide switches used in smart products may integrate microprocessors to support digital signal control.
7. Safety :
   • Insulation performance: Enhanced insulation design to cope with high voltage or high frequency applications (such as industrial equipment or medical equipment).
   • Anti-arc design: reduces the risk of arcing during high voltage operation.
8. Logo and Identification :
   • Function identification: Add marks or symbols to the switch to facilitate user identification of operation.
   • Brand customization: Print or engrave the brand logo on the switch surface.

Example Application :

• Consumer electronics: Customize ultra-thin slide switches to meet the internal structure requirements of mobile phones or tablets.
• Industrial Control: High-durability slide switches are used in robotic arm control systems.
• In-car equipment: Waterproof slide switches are used for in-car lighting and audio control.
